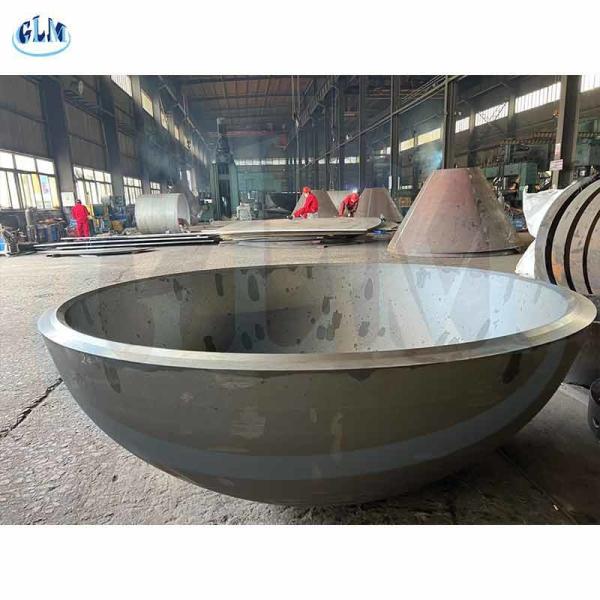

Welding Semi Ellipsoidal Head Stainless steel flanged and dished head Covers

Brand Name : GLM

Model Number : CAP

Certification : ASME, PED and GB

Place of Origin : China

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50000

Packaging Details : wooden box and iron shelf or as percustomers requirement

Head Code : conical tank heads

Diameter : 3800

Shape : Equal

material : Carbon steel

Standard : ANSI, ASME ,MSS, API, DIN, JIS, BS. AWWA and GB

Usage : Convey Water, Oil, Gas, Steam and so on

Contact Now

Provide welding end cap stainless flanged only tank ends and welding head covers

It is major Part of Pressure Vessel which closes ends of the cylindrical section or shell of the pressure vessel is called as Pressure Vessels Heads. There are various common names are used for Pressure Vessels Heads which are Dish Ends, Formed Heads, End Closure, End Caps, Vessel Ends, Vessel Caps etc. but most Common name is Dish ends.

Ellipsoidal Heads :

It is a most widely used Pressure Vessel Heads. It has wider Radial section is available for pressure distribution.it withstand maximum pressure as compared to other heads. So it is most preferred pressure vessels heads. for same design condition, Dish end Thickness of ellipsoidal heads is approximately equals to shell thickness so it is most economical heads. Generally most used Ellipsoidal Heads Configuration is as per 2:1 Ellipsoidal Section.

Specifications of Dished Tank Heads :

Brand Name:	GLM
Diameter:	89mm--10000mm
Thickness:	2mm--300mm
Reduction Ratio:	about 10%
Material:	Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.
Forming method:	Hot forming,cold forming
Surface Treatment:	Sand Blasting,Pickling,oil,discaling
Inspection:	UT,RT,MT,PT,TOFD.
Applicable Standard:	ASME ,PED and GB
Certificate:	ISO9001,ISO45001,OHSAS18001
Applications:	Such as oil, chemical industry, water conservancy, electric power, boiler, machinery, metallurgy, sanitary construction etc.
Package:	Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Customized Product:	Available

producing-process mode

Applications of Hemispherical Head
